Honda Water Pumps
Honda centrifugal pumps are ideal for use in a wide variety of applications such as agricultural, construction sites, de-watering, sprinkler systems, fire fighting, boating and general home use. Honda even provides a pump for some saltwater and chemical applications.
Honda's centrifugal pumps are designed to be reliable, easy to start, easy to prime, easy to maintain and are built to last. Honda has provided pumps to the world market for more than 20 years, and engines (the heart of the pump) for more than 30 years. Honda's reputation for high efficiency, long life engines and high quality pumps has made them the favorite in rental and commercial applications.
Quality 4-Stroke Engines
Honda uses both OHV and side valve engines in their water pump line-up.
Transistorized pointless ignition systems are virtually maintenance free. They offer easy starting under all conditions.
Mufflers are the quiet type, with heat shields covering the entire muffler for added safety.
Easy starting is accomplished by automatic decompression that reduces the pulling force required when starting the engine.
Pump Features
Aluminum pump housing reduces the overall weight of the unit.
The inlet flapper valve allows the pump case to be filled without the water flowing out of the suction opening. This reduces the priming time. The flapper also prevents siphoning after the engine is shut down. The pump case drain and fill plugs are a special plastic. They don't corrode to the case and they don't swell. They are easily removed with your fingers. O-rings back each plug for a better seal.
Most Honda pumps contain a heavy-duty cast iron impeller and volute to resist wear. Additionally, the impeller is shimmed for easy impeller-volute clearance adjustment to maintain maximum pump performance. Honda WT series trash pumps also feature a replaceable stainless steel volute wear plate. Most general-purpose models contain a durable and easy-to-service ceramic-carbon mechanical water seal. WD and WT models offer silicone-carbide mechanical seals to better withstand mild abrasives.
Most models also include a full tubular frame to protect the pump from damage. The frame also provides convenient lifting points.
All gasoline-powered pumps are equipped with Honda OHV commercial grade or OHC premium residential engines. All meet EPA and CARB emission levels and most carry a two-year limited warranty for non-commercial use.
General Purpose
Extensive selection for irrigation, flood control, light construction, pool draining, and more.

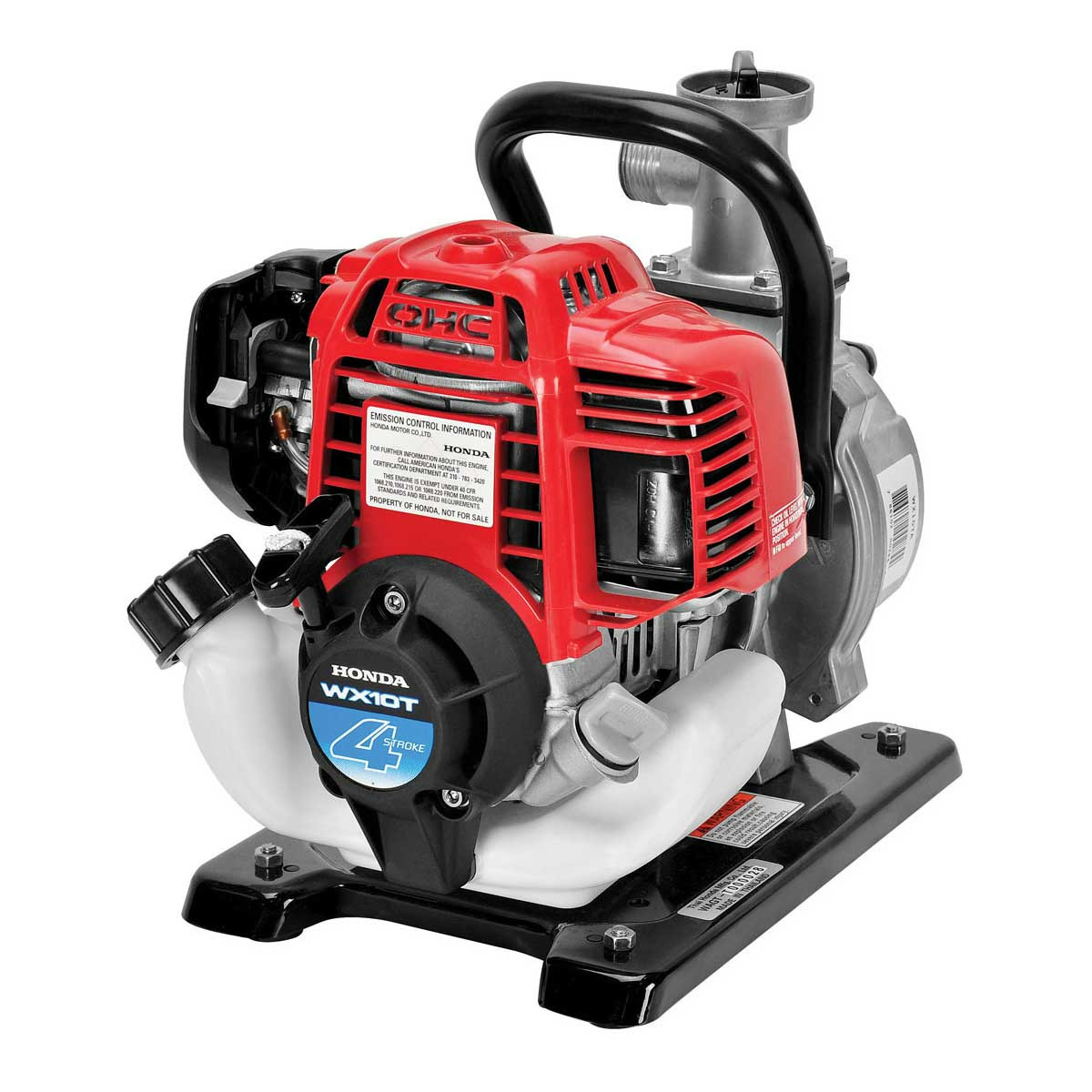

WX10
(WX10TA)
Features & Benefits:
Lightweight general purpose 1" pump
Easy starting Honda mini 4-stroke engine
32 gal./min capacity
Weighs only 13 lbs.
Garden hose adaptor, suction hose, clamps, and strainer included

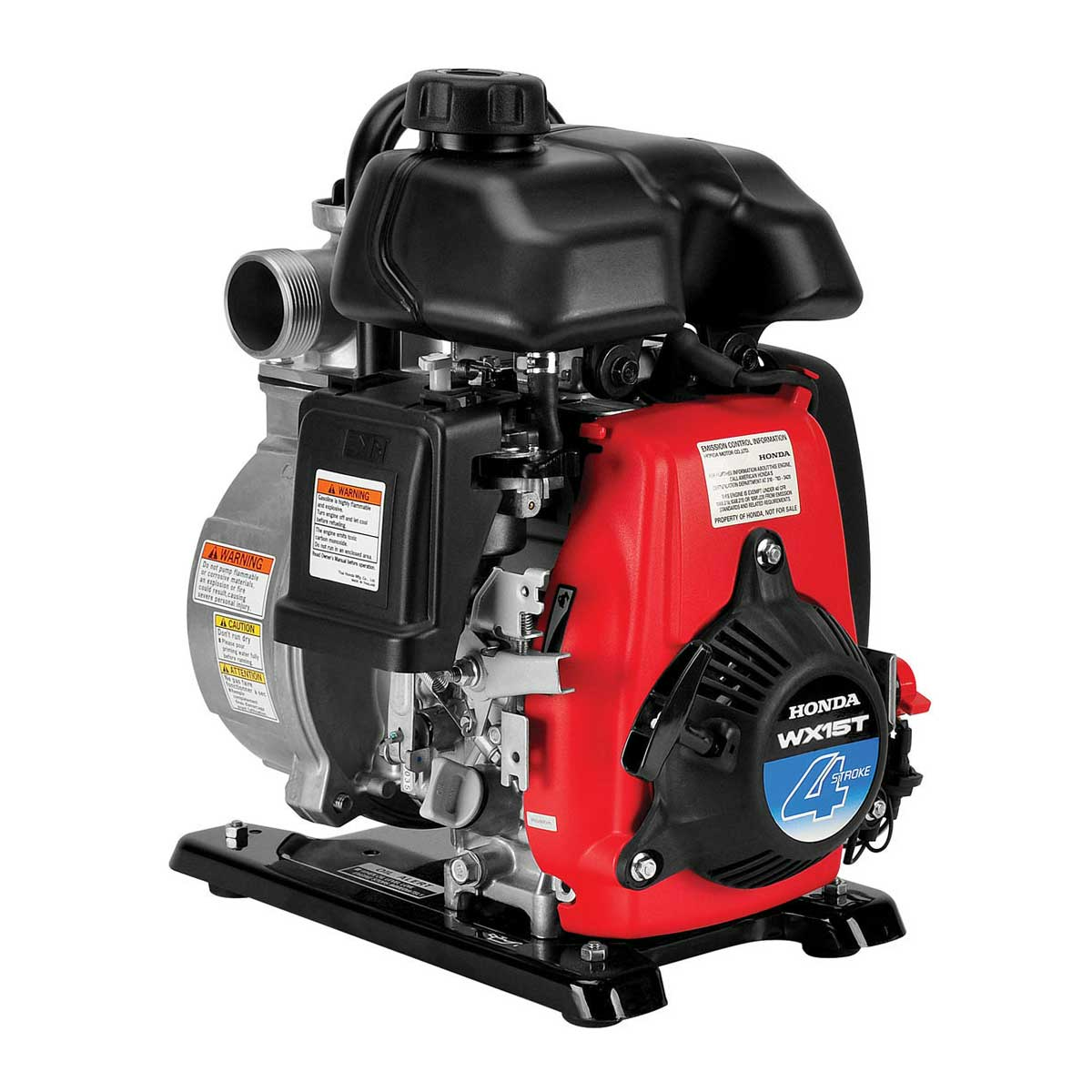

WX15
(WX15T)
Features & Benefits:
Lightweight general purpose 1.5" pump
Easy starting Honda mini 4-stroke engine
Weighs only 20 lbs.
74 gal./min capacity
Hose clamps and strainer included

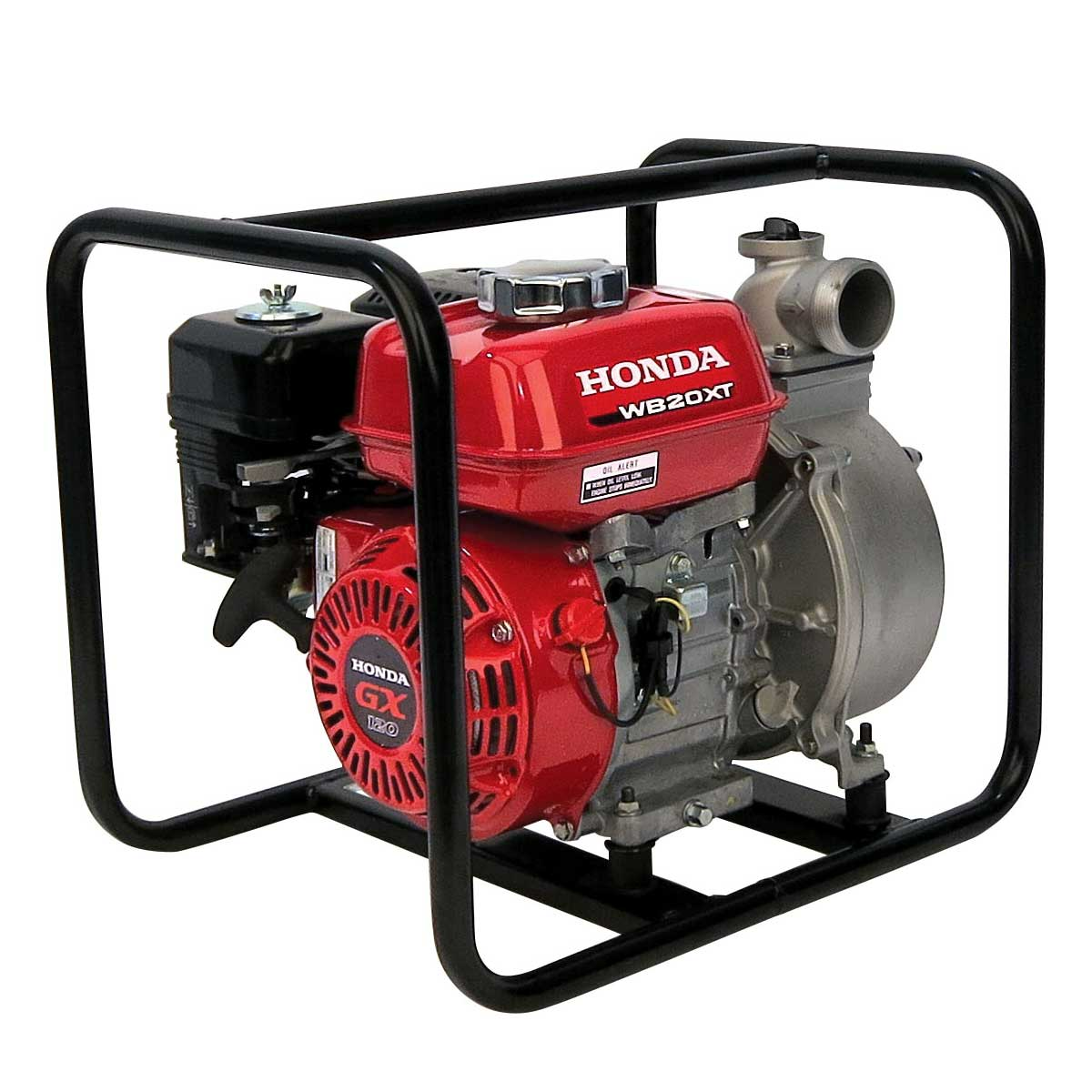

WB20
(WB20XT3)
Features & Benefits:
General purpose, centrifugal 2" pump
Easy starting Honda OHV commercial engine
164 gal./min. capacity
Durable silicon carbide mechanical seal
Cast iron volute and impeller

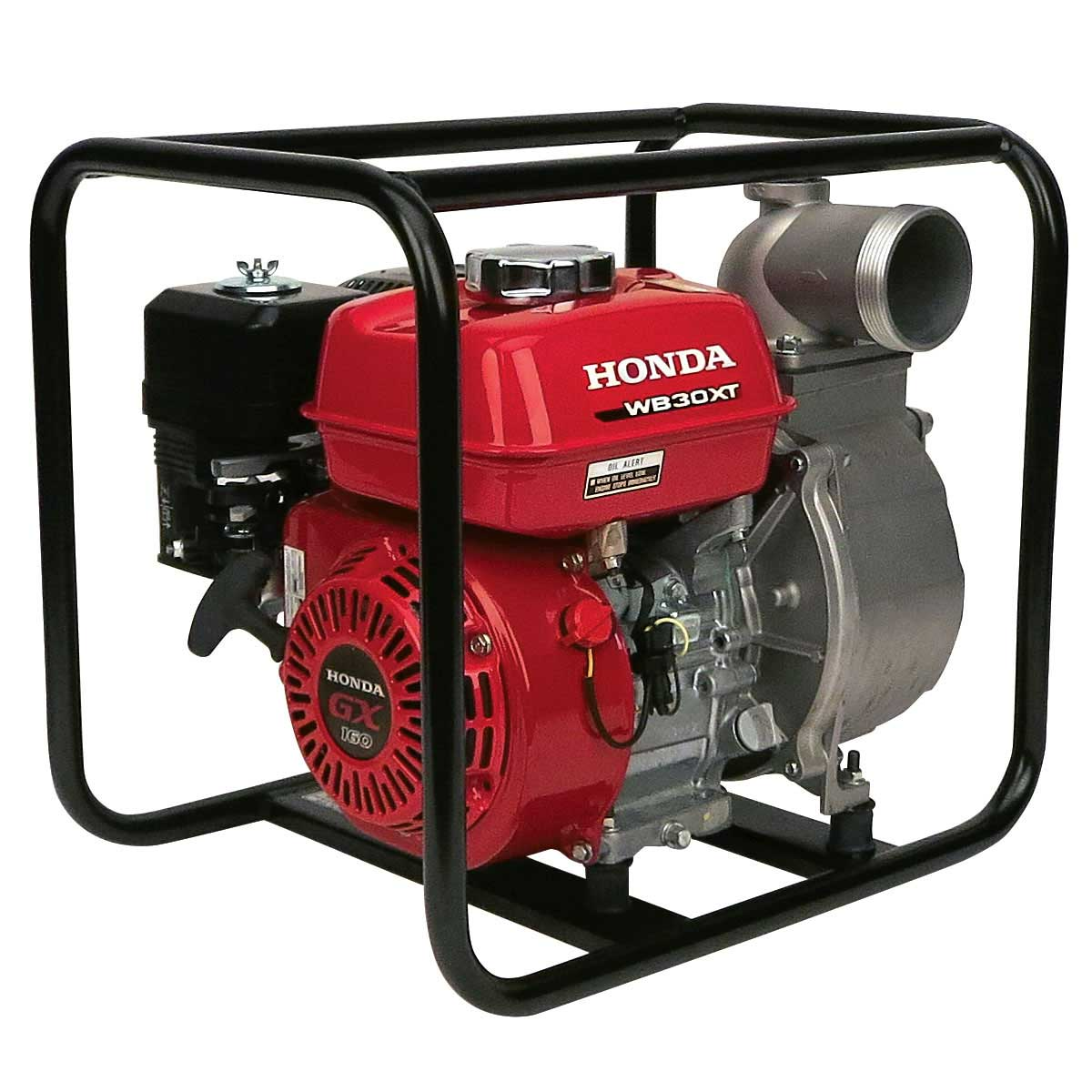

WB30
(WB30XT3)
Features & Benefits:
General purpose, centrifugal 3" pump
Easy starting Honda OHV commercial engine
290 gal./min. capacity
Silicon carbide mechanical seal
Cast iron volute and impeller

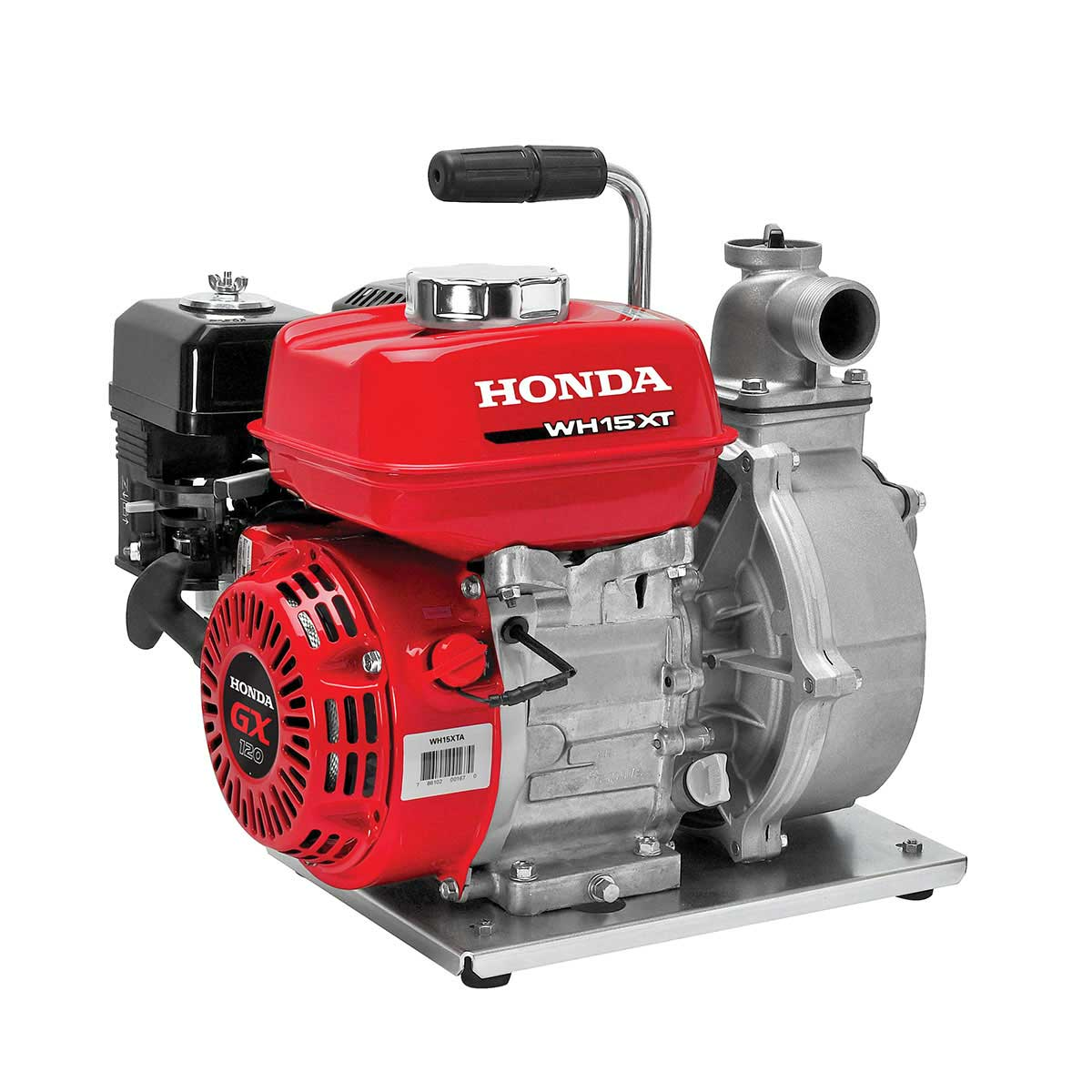

WH15
(WH15XTA)
Features & Benefits:
High pressure 1.5" centrifugal pump
Easy starting Honda OHV commercial engine
98 gal./min. capacity
57 psi max.
Cast iron volute and impeller

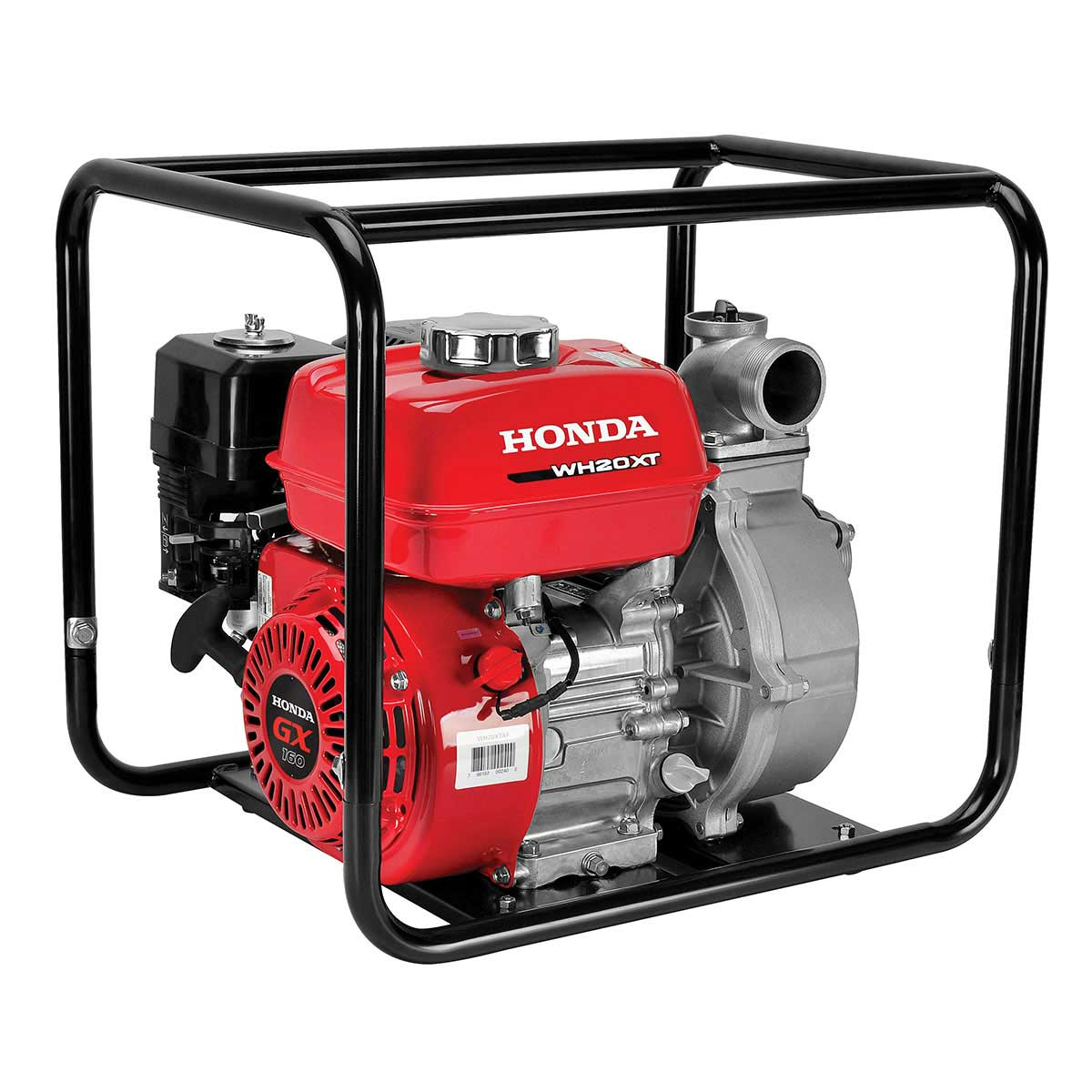

WH20
(WH20XTAF)
Features & Benefits:
High pressure 2" pump Easy starting Honda OHV commercial engine 119 gal./min capacity 64 psi max. Cast iron volute and impeller
Construction
Honda's Trash and Diaphragm pumps are designed for job sites and high volume applications.

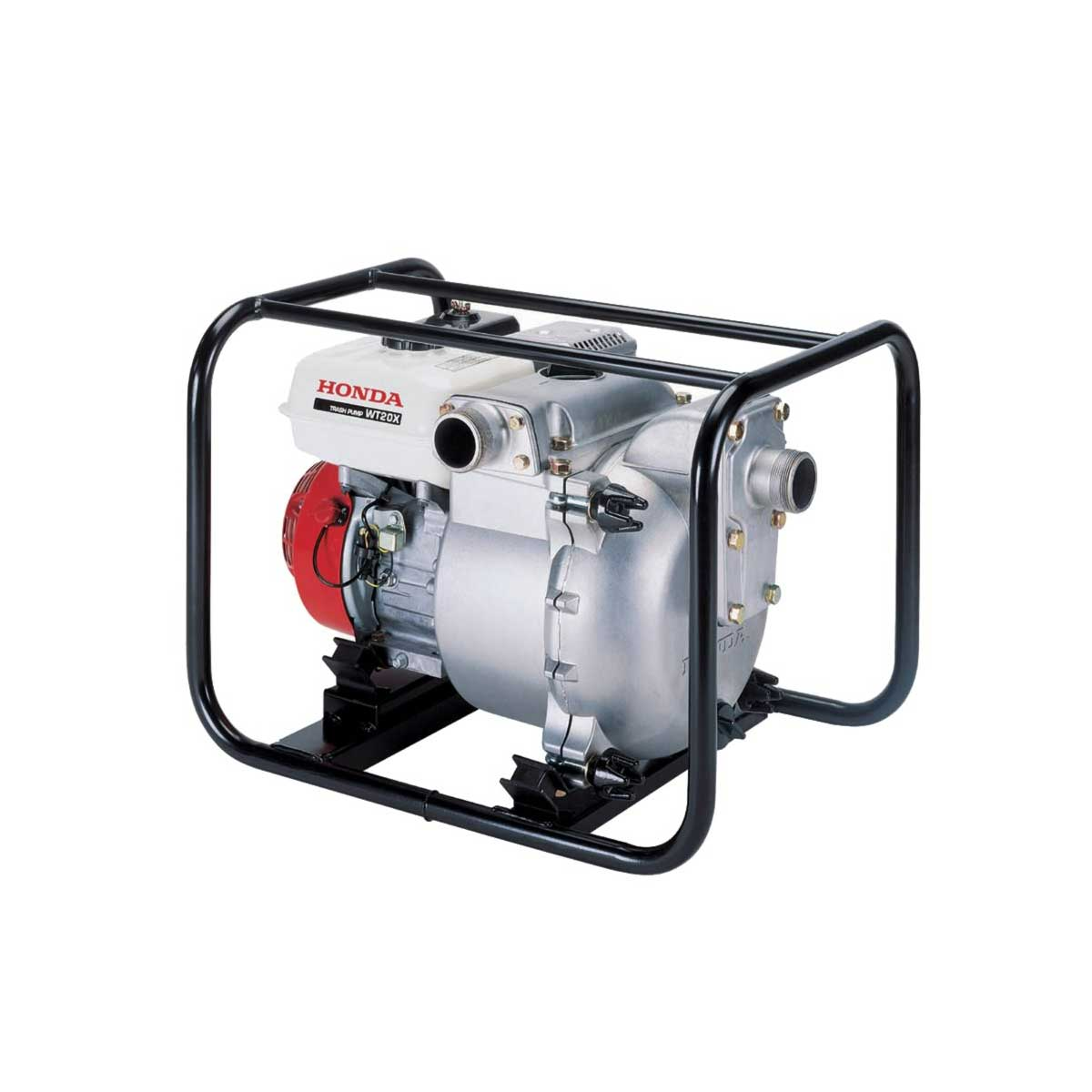

WT20
(WT20XK4A)
Features & Benefits:
Heavy-duty 2" construction trash pump
Easy starting Honda OHV commercial engine
185 gal./min capacity
Solid handling capability up to 13/16"
Cast iron volute and impeller
Quick clean out port

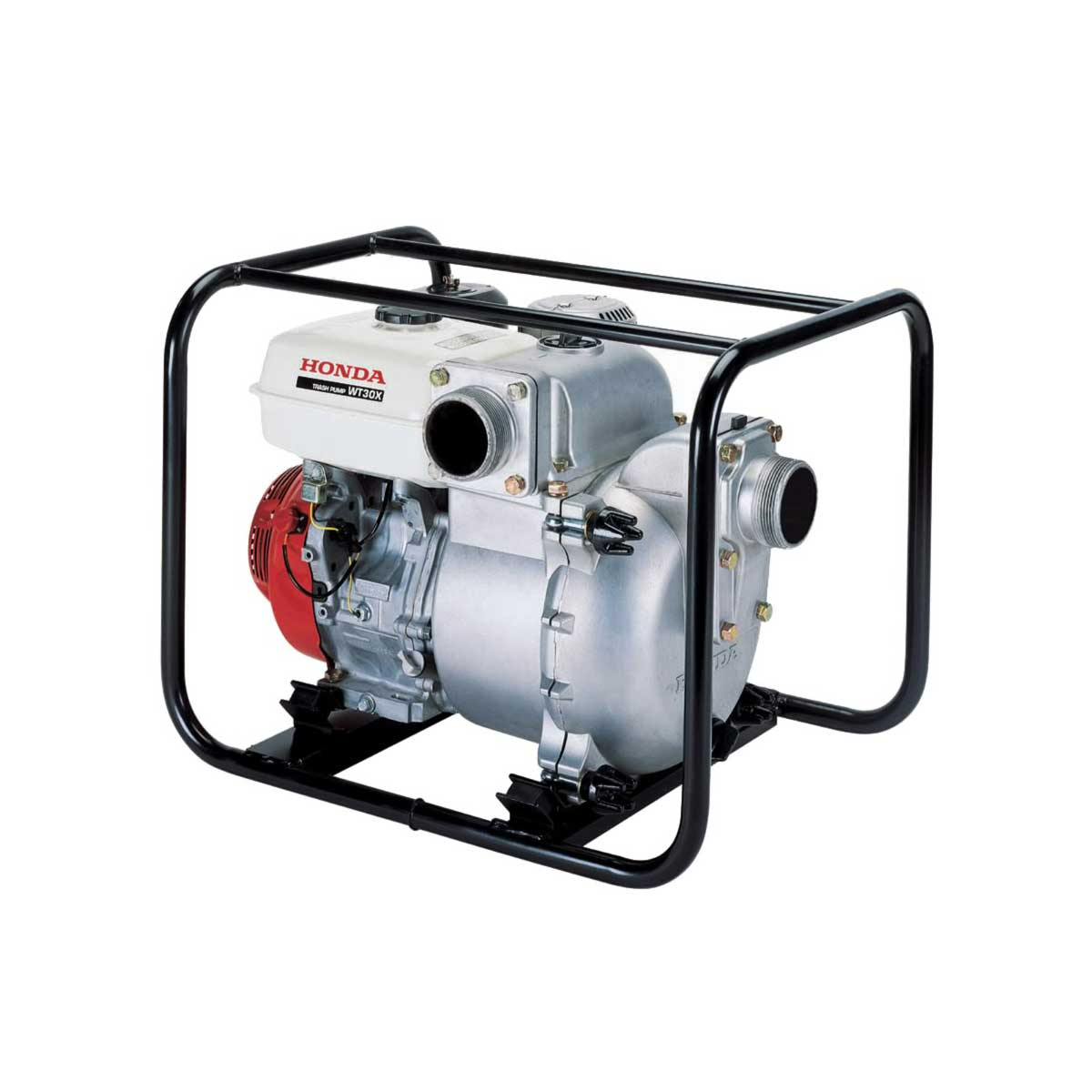

WT30
(WT30XK4A)
Features & Benefits:
Heavy-duty 3" construction trash pump
Easy starting Honda OHV commercial engine
317 gal./min capacity
Solid handling capability up to 1 1/16"
Cast iron volute and impeller
Quick clean out port
WT40
(WT40XK3A)
Features & Benefits:
Heavy-duty 4" construction trash pump
Easy starting Honda OHV commercial engine
423 gal./min capacity
Solid handling capability up to 1 1/16"
Cast iron volute and impeller
Quick clean out port

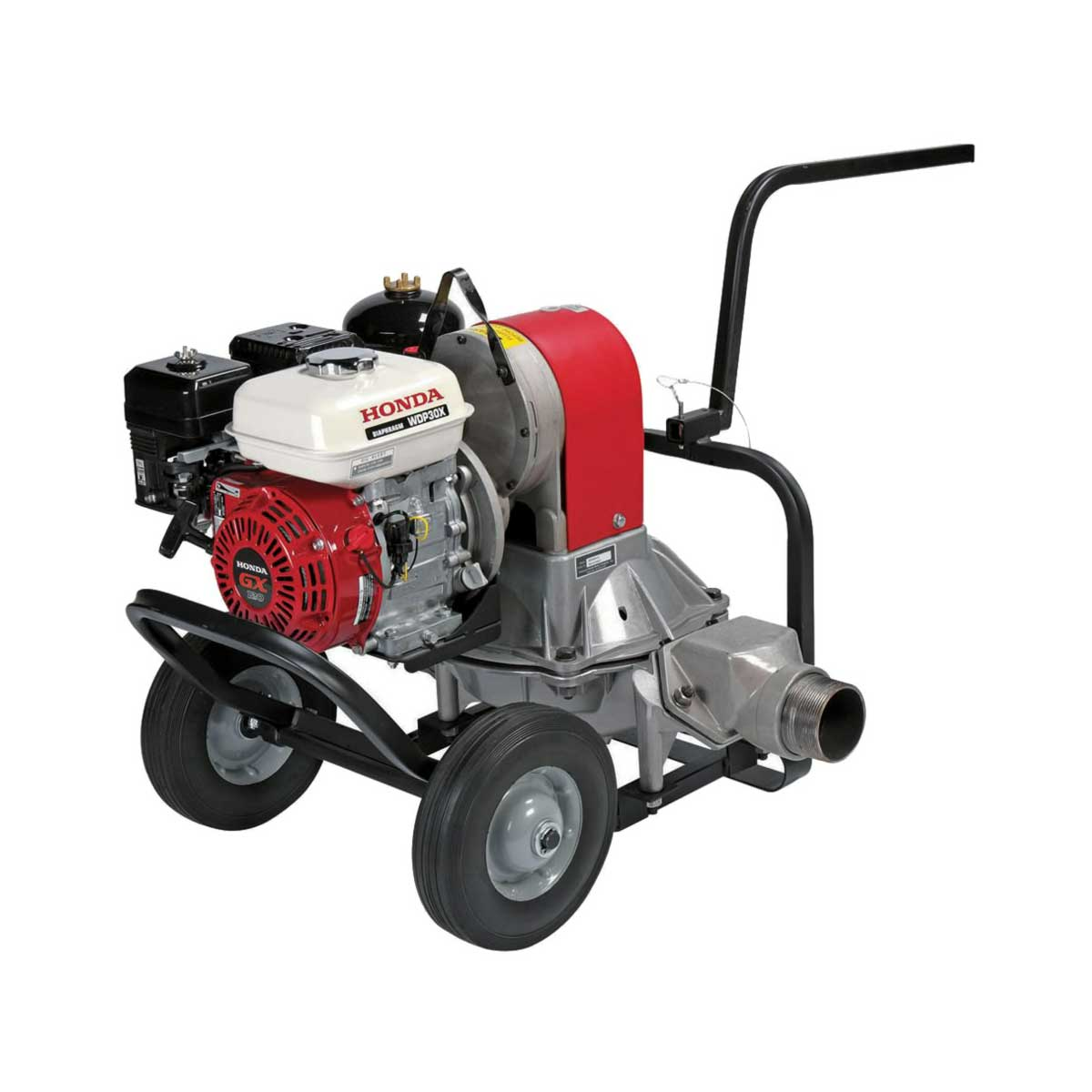

WDP30
(WDP30XK2AT)
Features & Benefits:
Dry, self-priming 3" diaphragm pump
Easy starting Honda OHV commercial engine
80 gal./min capacity
Special "rock channel" and spring loaded connecting rod help prevent case damage
Perfect for low volume, dry run operation
Multi-Purpose
Designed to handle a variety of industrial and agricultural chemicals, in addition to clear water.
WMP20
(WMP20XA1T)
Features & Benefits:
Multi-purpose 2" pump
Designed for pumping industrial and agricultural chemicals
Easy starting Honda OHV commercial engine
220 gal./min capacity
Thermoplastic pump housing for chemical capability
Submersible
Ideal for fountains, ponds, and more.

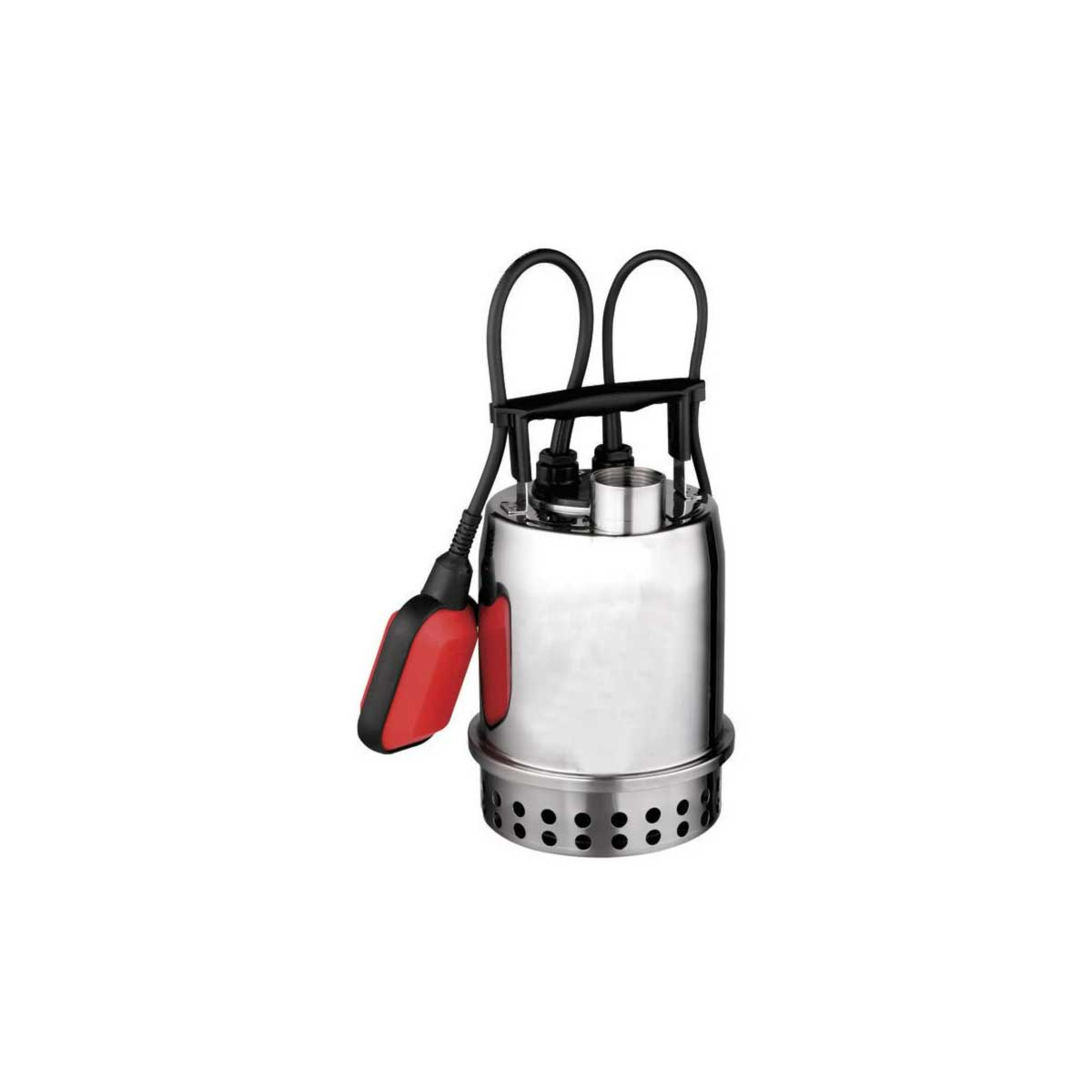

WSP33
(WSP33K1AA)
Features & Benefits:
1/3 hp 115V submersible pump
Top discharge
40 gal./min capacity
Lightweight durable stainless steel casing
Automatic non-mercury float switch
Rated for continuous use

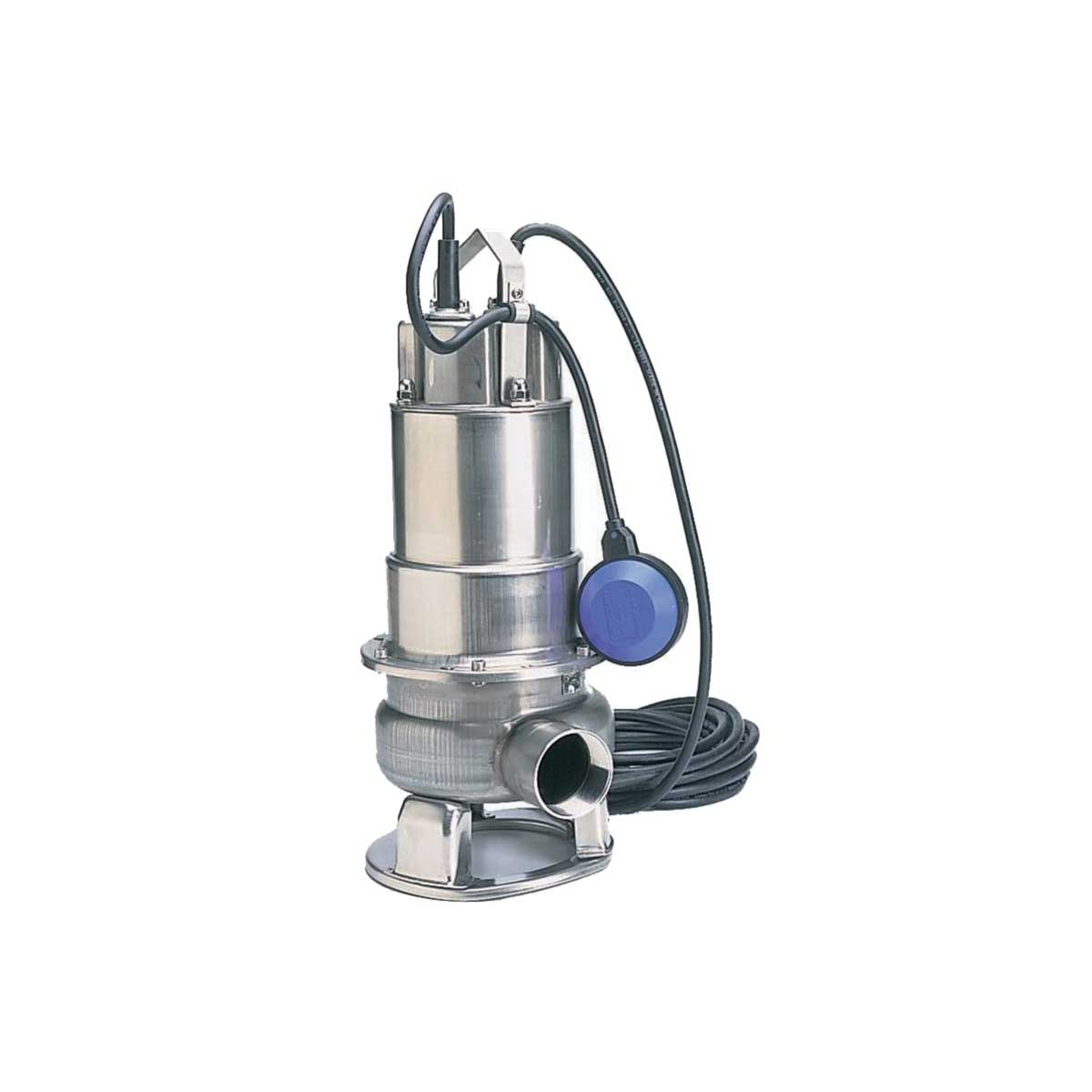

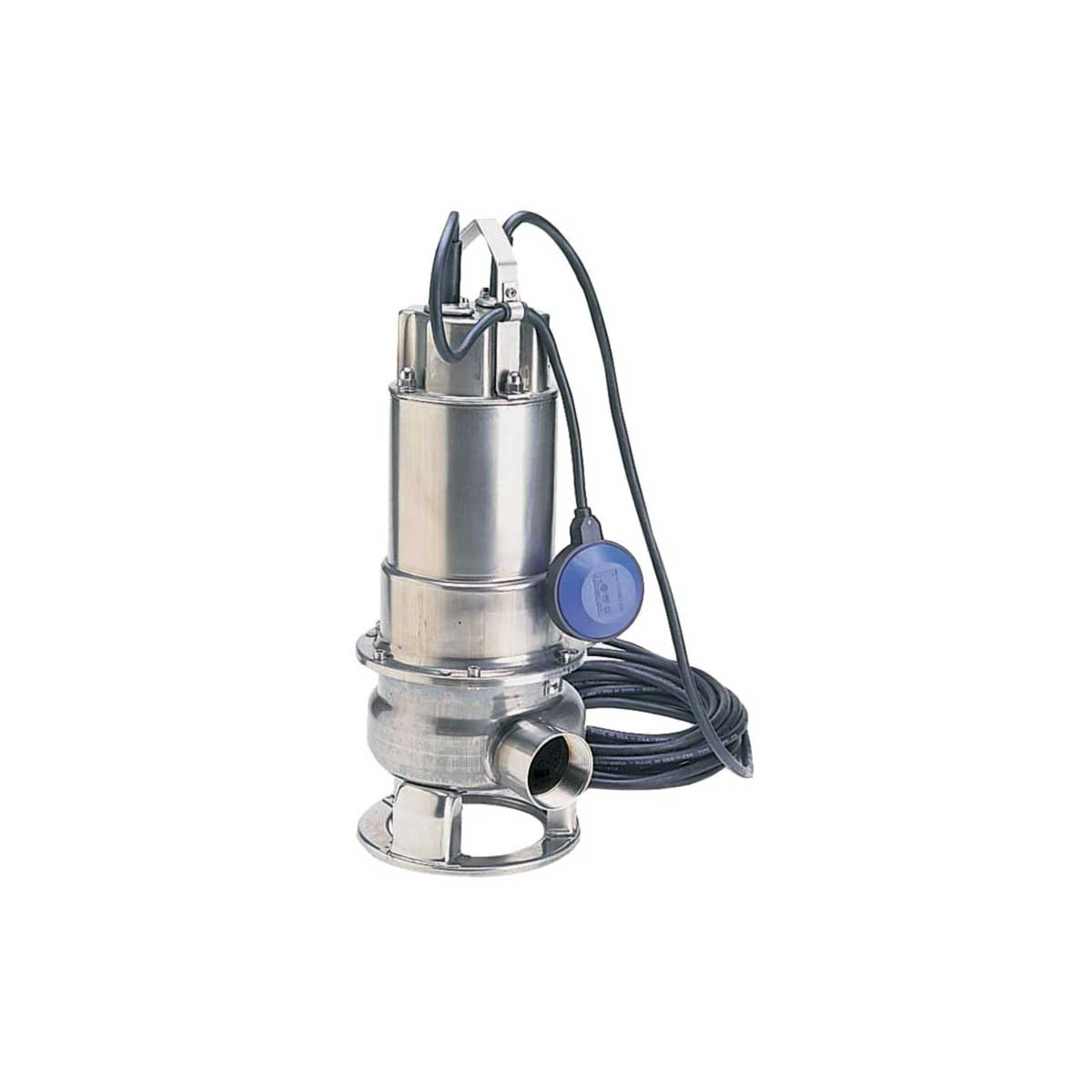

WSP50
(WSP50AA)
Features & Benefits:
1/2hp 115V submersible trash pump
Side discharge
110 gal./min capacity
Solids handling capability up to 2"
Automatic non-mercury float switch
Rated for continuous use

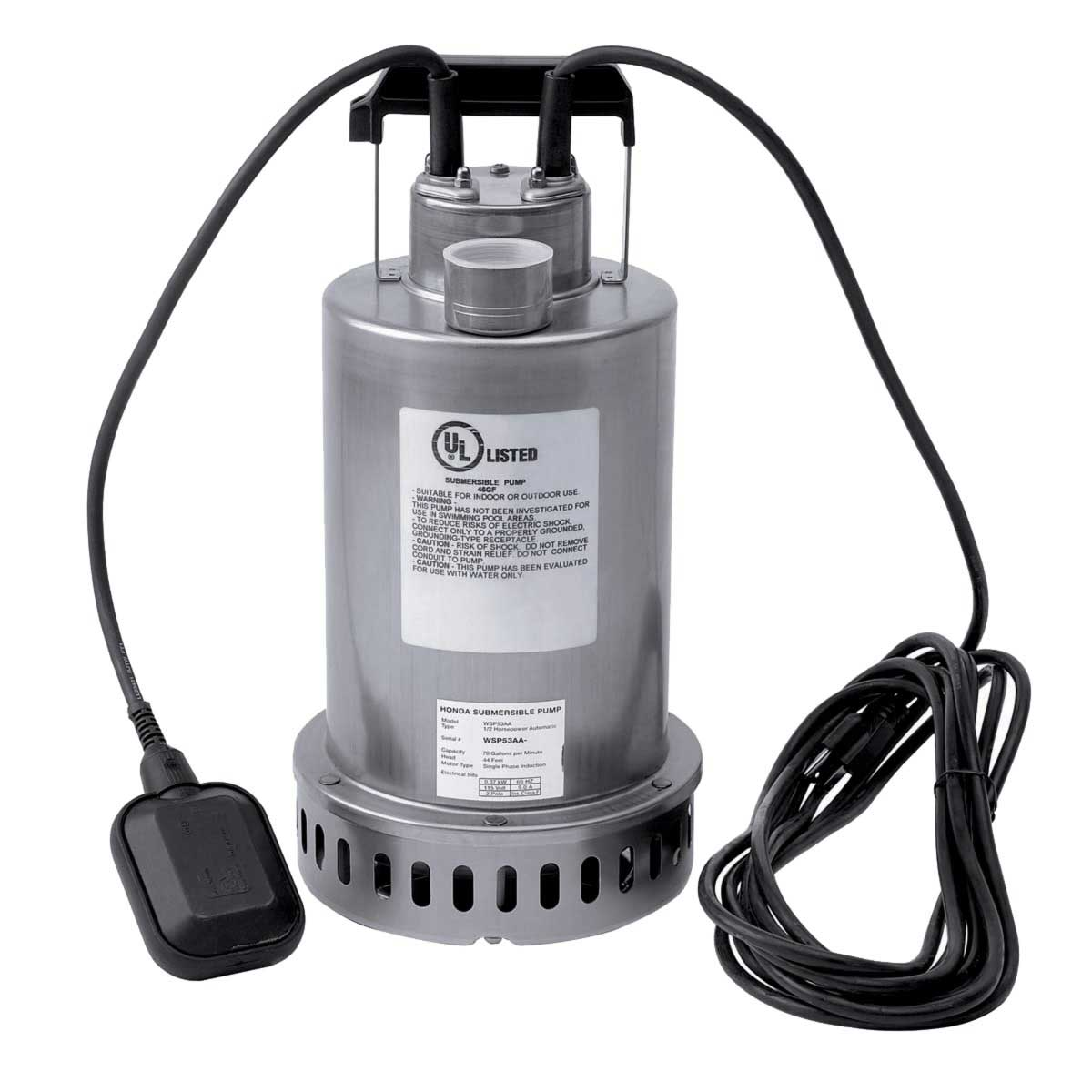

WSP53
(WSP53AA)
Features & Benefits:
1/2 hp 115V submersible pump
Top discharge
70 gal./min. capacity
Automatic non-mercury float switch
Double mechanical seal construction
Rated for continuous use

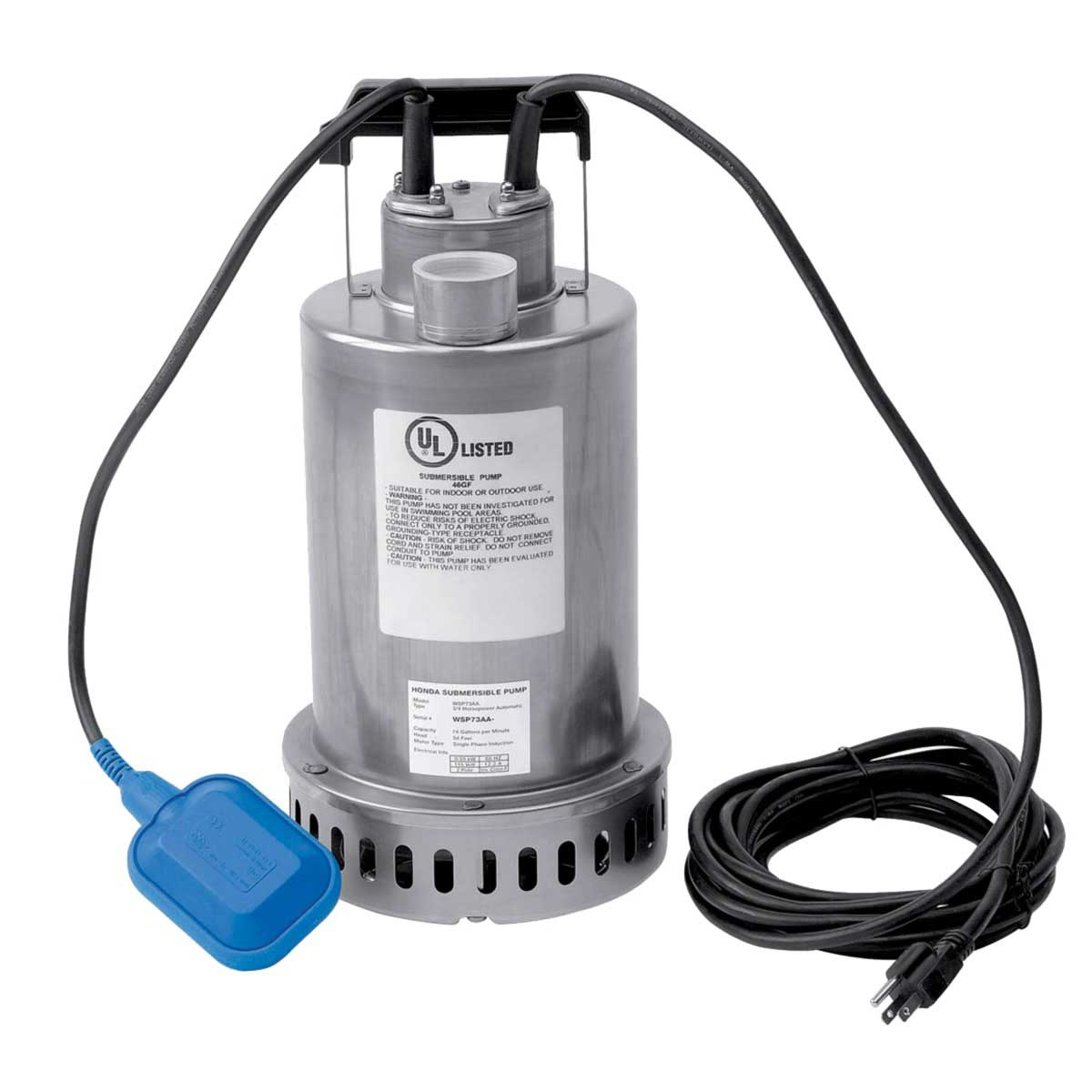

WSP73
(WSP73AA)
Features & Benefits:
3/4 hp 115V submersible pump
Top discharge
74 gal./min. capacity
Automatic non-mercury float switch
Double mechanical seal construction
Rated for continuous use
50 ft cord
WSP100
(WSP100AA)
Features & Benefits:
1hp 115V submersible trash pump
Side discharge
150 gal./min capacity
Solids handling capability up to 2"
Automatic non-mercury float switch
Rated for continuous use
